AHU Ionizer

About AHU Ionizer

This is how Ionaire sanitizes the air you breathe

• STEP 1 Anions normally found in clean outdoor air, are generated and rapidly disperse in the room.
• STEP 2 These Anions with the Cations present in the air, attach & breakdown Bacteria, Viruses, Molds, VOCs and odours.
• STEP 3 End product is just water vapour and the cleaning cycle repeats.

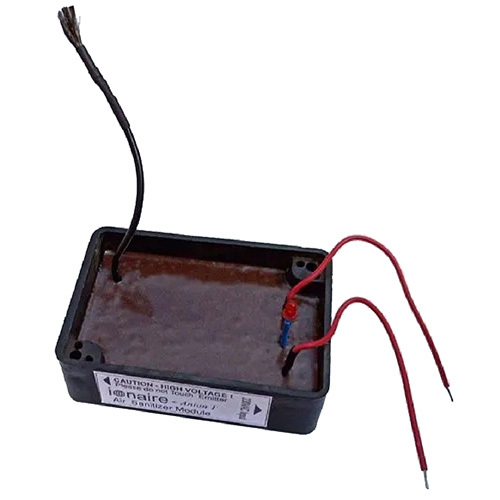

This is a high-powered Anion generator designed for use in tandem with any existing AIR DELIVERY SYSTEM. Ideal for placement next to or installed inside existing air-conditioners air purifiers or room coolers.

The unit produces several million plasma ions per cubic cm, which are injected into the room air where they attack pollutants such as microbes and odour.

Airborne particles are also charged which makes them stick together so that they are more efficiently trapped by the particle filters.

The ions disperse and make their way into the general building envelope, leaving the indoor environment feeling fresh and clean.

OPERATION, PLACEMENT AND USE OF YOUR IONAIRE - ANION 500

• Sleek design allows easy and convenient installation inside the air stream of existing air purifiers, room coolers or air-conditioners with a small clamp or with a double-sided tape.
• The unit runs on 230V supply and the red LED indicator should glow.
• lonaire consumes negligible power and can be connected so that it comes on alongwith the equipment in which it is installed. lonaire is totally maintenance-free.
• However, the emitter can be gently wiped if lint or dust collects on it.
• Always switch off before any cleaning operation.
• Do not operate lonaire in the presense of combustible vapours.
• lonaire can be easily tested by an electrical line tester which will glow when brought near the emitter.

Powerful Ion Generation for Superior Air Quality

The AHU Ionizer produces more than 20 million ions per cubic centimeter, targeting airborne particles and contaminants to improve indoor air quality dramatically. This high output, combined with its ozone-free operation, makes it especially suited for sensitive environments like hospitals and laboratories, where air purity is critical.


Designed for Compatibility and Easy Installation

Engineered to fit seamlessly with air handling units and HVAC systems, the AHU Ionizer features a compact, durable design. Installation is straightforward, with a clamp and screw mount system, a 1.2-meter wire length, and a standard terminal connection. Recommended placement is near the AHU air intake or outlet for optimum ion distribution.


Economical and Low Maintenance Operation

With a rated power of just 10W and rated current of 0.05A, this ionizer offers remarkably low energy consumption. Its service life exceeds 20,000 hours under continuous operation, and maintenance requirements are minimal-only occasional dusting is needed, ensuring long-term performance with little intervention.
